Electro-Pneumatic Regulators
Electro-Pneumatic Regulator ITV
 | ・Stepless control of air pressure in proportion to electrical signals ・Sensitivity: 0.2 kPa (100 kPa specification) ・Linearity: ±1% or less (F.S.) ・Hysteresis: 0.5% or less (F.S.) ・Communication: CC-Link, DeviceNet™, PROFIBUS DP, RS-232C |
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITV0000 | Built-in One-touch fitting φ4，φ5/32 | 0.001 to 0.1 0.001 to 0.5 0.001 to 0.9 －1 to －100kPa |
| ITV1000 | 1/8，1/4 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |
| ITV2000 | 1/4，3/8 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |
| ITV3000 | 1/4，3/8，1/2 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |
Electronic Vacuum Regulator ITV
 | ・Stepless control of vacuum pressure in proportion to electrical signals ・Communication: CC-Link, DeviceNet™, PROFIBUS DP, RS-232C |
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITV009□ | φ4，φ5/32 One-touch fitting | －1 to －100 |
| ITV209□ | 1/4 | －1.3 to －80 |
Controller for Electro-Pneumatic Regulator IC
 | ・Is mainly used integrated with the ITV0000 series which is not equipped with a display function ・Converts digital input signals into analog output signals ・10 bit parallel input signal (maximum) Possible pressure setting of 210= 1024 points ・4-point preset output Applicable to programming functions with up to 20 steps |
5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
 | ・Stepless control of air pressure proportional to electrical signals ・Maximum supply pressure: 5.0 MPa ・Set pressure range: 0.01 to 3.0 MPa ・Maximum flow rate: 3000 L/min (ANR) ・Fluid: Air, N2, O2, Ar ・Wetted parts: Fluorine grease |
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITVX | 3/8 | 0.01 to 3.0 |
■Stepless control of air pressure proportional to an electrical signal
Maximum supply pressure ： 5.0 MPa
Set pressure range ： 0.01 to 3.0 MPa
Maximum flow rate ： 3000L/min（ANR）*
* Supply pressure: 5.0 MPa Set pressure: 3.0 MPa
Fluid ： Air, N2, O2*, Ar
* When using O2, refer to “Fluid Supply” on page 865.
Wetted parts : Fluorine grease
Power consumption ： 3 W or less

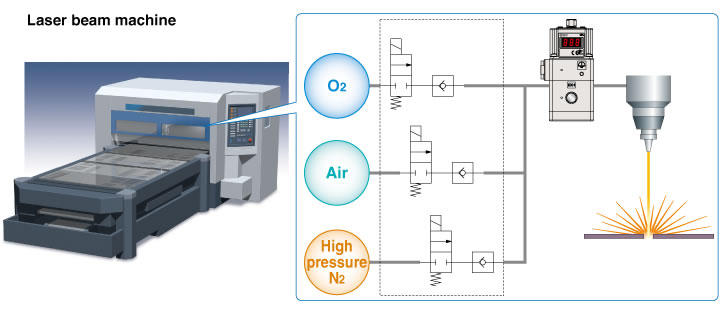

■Application example
3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVH
 | ・Maximum supply pressure: 3.0 MPa ・Set pressure range: 0.2 to 2.0 MPa Stepless control of air pressure up to 2.0 MPa ・Stability: ±1% F.S. or less ・Power consumption: 3 W or less ・Maximum flow rate: 3,000 L/min (ANR) ・Wetted parts: Fluorine grease |
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITVH | 1/4，3/8 | 0.2 to 2.0 |

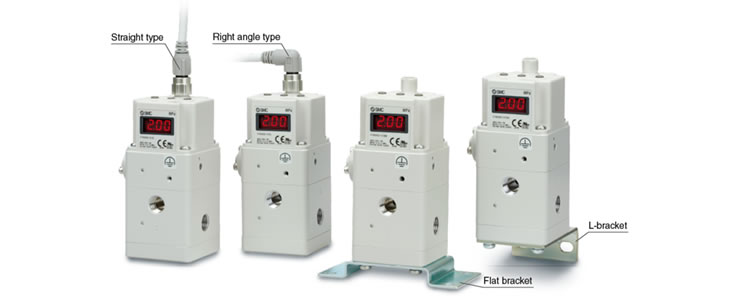

Connector, Bracket
Variation Map
Electro-Pneumatic Regulators
- Product Code: Electro-Pneumatic Regulator ITV
- Availability: In Stock
-
-
